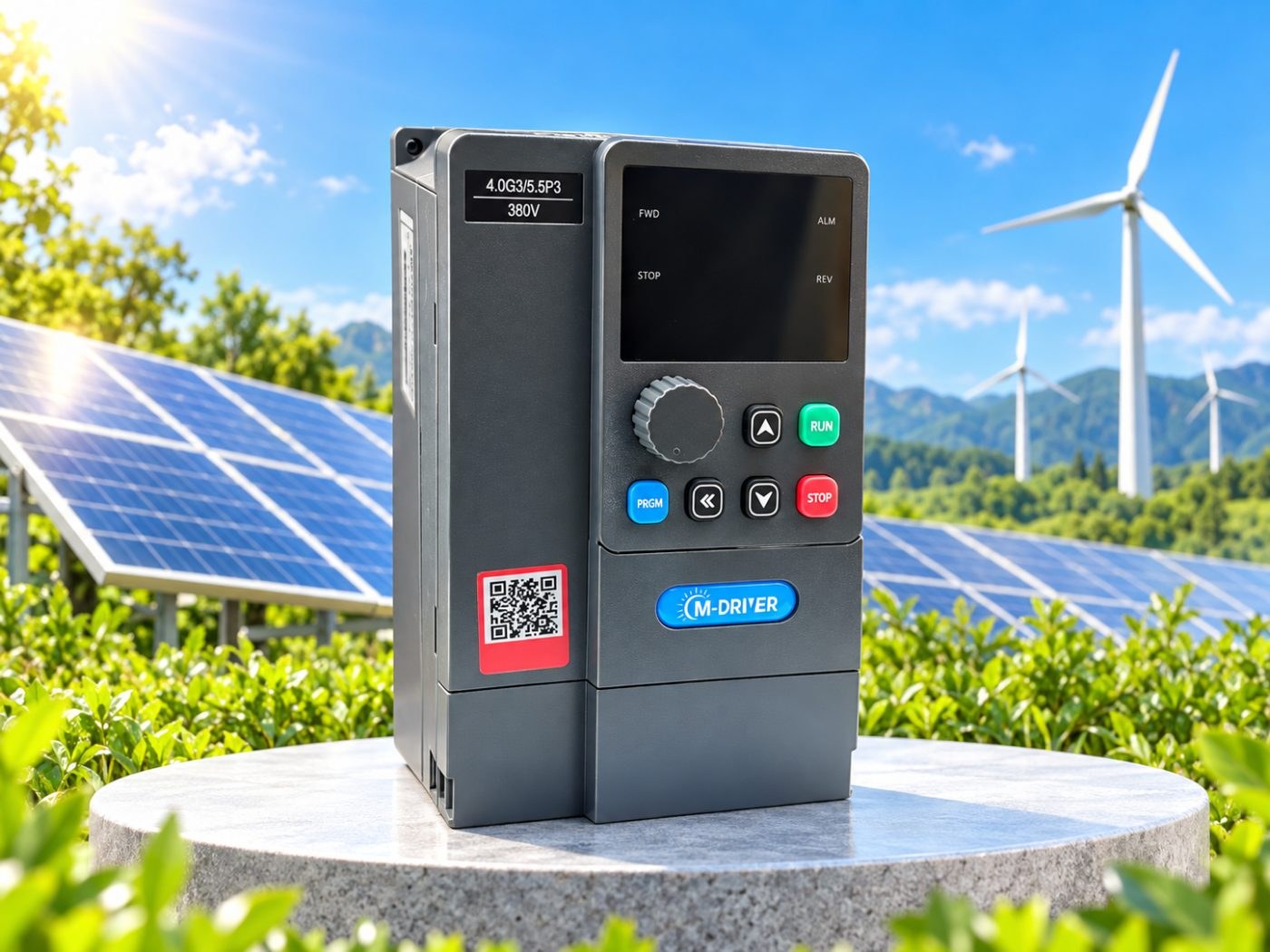

M-DRIVER M900-0040G3
ราคา 1 บาท
900 Series Fan and Pump VFD Drive
M-driver high-performance universal frequency converter is developed based on advanced vector control technology platform, using closed-loop vector control algorithm, and supporting high-precision control of induction motor and permanent magnet synchronous motor. The m-driver VFD Drive can improve system efficiency by up to 25%, achieve better energy consumption performance, and ensure reliable operation through optimized structural design and component layout.
จุดเด่น / รายการในชุด
- Specification:
- Mini Type: 220V 0.75kW~1.5kW / 380V 0.75kW~2.2kW
- General Type: 220V 0.75kW~75kW
- General Type: 380V 0.75kW~630kW
- Availability: OEM/ODM, Minmum Order Request
- Warranty: 18 Months
สเปกสินค้า
| Item | Specifications |
|---|---|
| Maximum Frequency | Vector Control: 0~500Hz; V/F Control: 0~500Hz |
| Carrier Frequency | 0.5kHz~16kHz; the carrier frequency will be automatically adjusted according to the load characteristics. |
| Input Frequency Resolution | Digital Setting: 0.1Hz; Analog Setting: 0.01V corresponding maximum frequency ×0.1% |
| Control Mode | Open Loop Vector Control (SVC); V/F Control |
| Startup Torque | G Type: 0.5Hz/150% (SVC); P Type: 0.5Hz/100% |
| Speed Range and Precision | 1:100 (SVC); ±0.5% (SVC) |
| Over Load Capability | G Type: 150% rated current 60s; 180% rated current 3s / P Type: 120% rated current 60s; 150% rated current 3s |
| Torque Boost | 0.1%~30.0% |
| V/F Curve | Line Type, Square Type |
| Acc./Dec. Curve | Straight line or S curve acceleration and deceleration mode; acceleration and deceleration time range between 0.0 to 500.0s |
| DC Brake | DC Brake Frequency: 0.00Hz to maximum frequency; Brake time: 0.0s to 36.0s |
| Multi-speed Running | It can realize at maximum of 4 segments speed running via the control terminal. |
| Built-in PID | It is easy to realize process-controlled closed loop control system. |
| Over-voltage/current Stall Control | It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process. |
| Motor Over-temperature Protection | Acceptable motor temperature sensor input (PT100, PT1000) |
| Timing Control | Timing control function: set time range 0.0~6500.0Min |
| Bus Support | Support Site Bus: Modbus |
| Protection Function | It can implement power-on motor short-circuit detection, output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection, which can be turned on or shielded as required. |
| Running Command Source | Operation panel reference, control terminal reference, and communication reference |
| Target Frequency Source | Digital reference, analog signal reference, multi-segment speed reference, PI control reference, and communication reference |
| Control Signal Input Terminal | 4 digital input; 2 analog input, support 0~10V, 4~20mA and 0~20mA signal |
| Control Signal Output Terminal | 2 relay output; 1 analog output, support 0~10V, 4~20mA and 0~20mA signal |
| Using Place | Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
| Altitude | 0~4000m; Derating use when more than 1000m (decrease by 1% per 100 meters) |
| Ambient Temperature | -10℃ to +40℃ (Derating use when under ambient temperature of 40℃ to 50℃) |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9m/s² (0.6g) |
| Storage Temperature | -20℃ ~ +60℃ |
| IP Level | IP20 |
| Pollution Level | PD2 |
| Power Distribution System | TN, TT |
