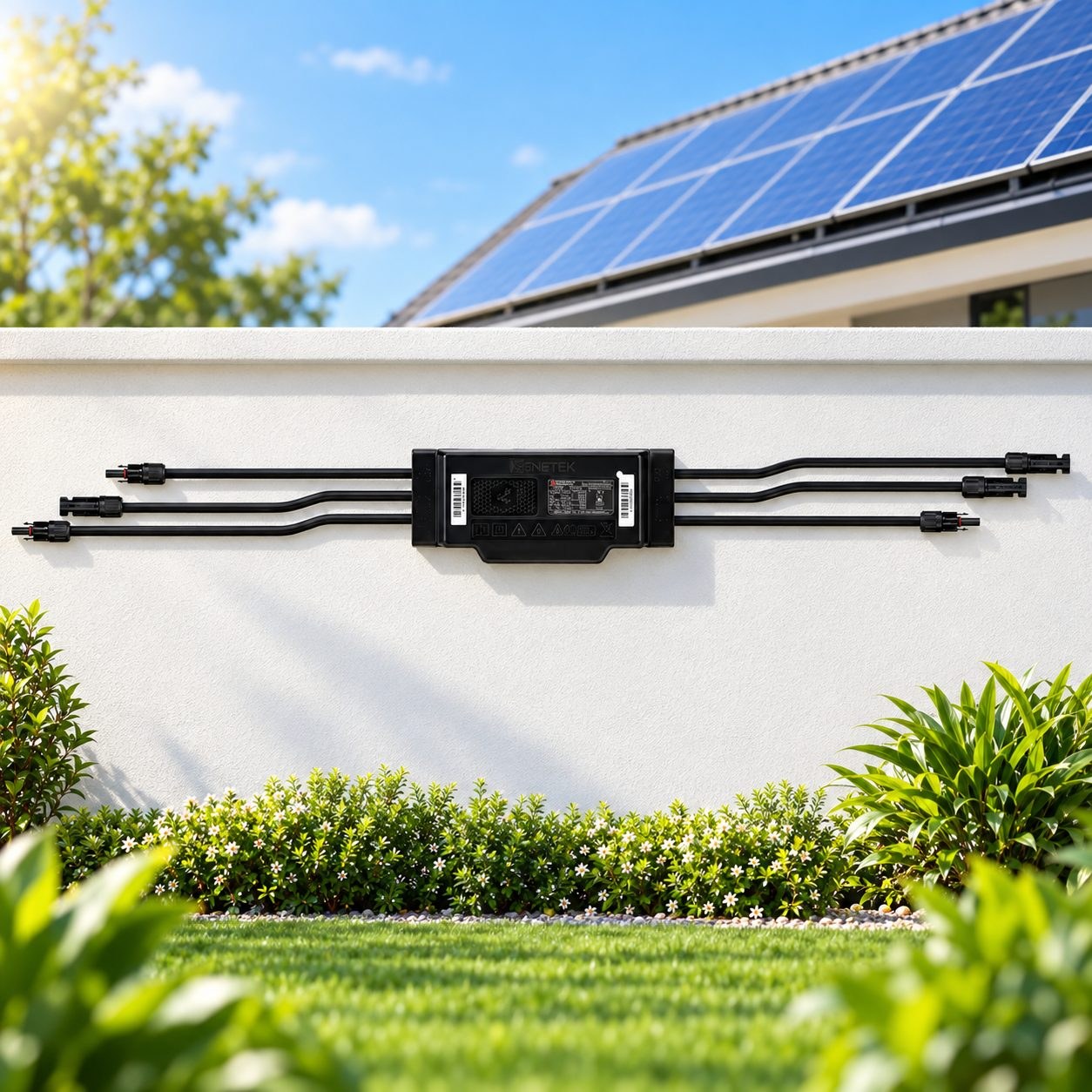

Dual Rapid Shutdown Scoutbee-1600M
ราคา 1,690 บาท
Dual Rapid Shutdown 2แผง ต่อ 1 ตัว สามารถดูสถานะผ่านมือถือได้
Safety, Optimization, Supervision and Transformation of Smart PV System
shutdown with one click to eliminate
monitoring of each module and the Connector (Input/Output) Compatible with Staubli MC4 or Customizable
entire station, timely failure detection Standard / Certification
and accurate positioning
original line
- RoHS
Safety, Optimization, Supervision and Transformation of Smart PV System
INPUT
Dual Rapid Shutdown Device
OUTPUT
Default Working State Shutdown
Communication
Others
สเปกสินค้า
| Product Code Scoutbee | 1600M |
|---|---|
| Scoutbee | 1600M |
| Support Modules | 2 |
| Max. Input Power Per Module | 800W/800W |
| Max. Input Voltage Per Module | 75VDC/75 VDC |
| Operating Voltage Range Per Module | 12~75VDC/12~75 VDC |
| Max. Input Current | 20 A |
| Voltage Range | 0~150 VDC |
| Max. Output Current | 20 A |
| Max. Output Power | 1600 W |
| Shutdown Voltage | 1.6~2 VDC |
| Efficiency > | 99.8% |
| Shutdown Time | 1 Second |
| Rapid Shut Down HPLC | Power Line Communication |
| Temperature range - | 40 ~ +85 ℃ |
| s & Features Relative humidity range | 0～100 % |
| Ingress Protection IP | 68 / NEMA Type 6P |
| Protective Class II | |
| INSTALLATION SPECIFICATION | |
| Input | 1：in1- 200 mm / in1+ 900 mm |
| Module-level Rapid Shutdown： | |
| Cable length (Input/Output) Input | 2：in2- 1100 mm / in2+ 300 mm |
| Reduce and eliminate the risk of electric | |
| Output：out- | 2800 mm / out+ 200 mm |
| shock, improve the safety of the power | |
| Size | 157.6 × 67.7 × 21 mm |
| station | |
| Weight | 705 g |
| Safe and reliable： With functions of | |
| Connector (Input/Output) Compatible with MC | 4,Staubli |
| overcurrent, overvoltage, and overheating | |
| protection STANDARD / Certification | |
| Automatic Shutdown： The default CE IEC/EN 62109-1 | 2010 |
| shutdown state to ensure the personal | |
| RoHs | 2011/62EU 2015/863EU |
| safety of installation and maintenance | |
| REACH EU REACH Regulation No | 1907/2006 Article 33 |
| personnel | |
| ETL UL | 1741 / UL3741 |
| Convenient Installation： It can be | |
| directly connected to the existing PV power WEEE EN 50419 | 022 |
| system without changing the original line | |
| Ultra-long Life： | 25-year lifespan,- |
| matching PV modules |
